Catalog No. F4481

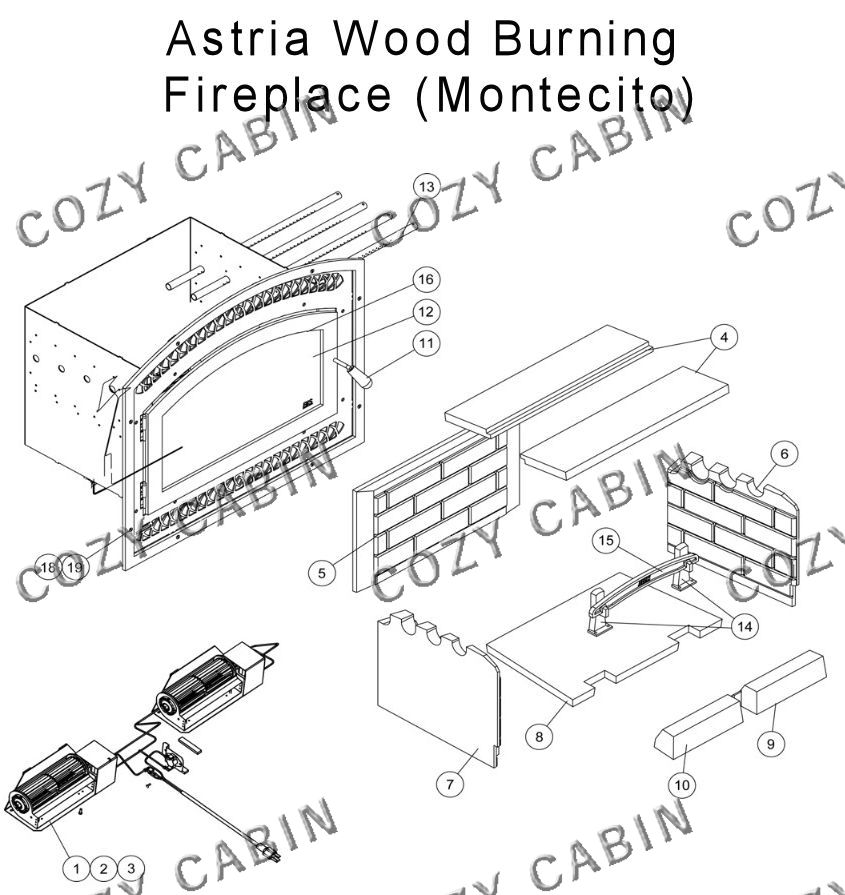

MAIN ASSEMBLY
Item Description (Part Number)
QTY: 1 Blower Kit [Heat Activated On/Off Pre-Wired] (F3544) +$426.87
QTY: 2 Blower Motor Speed Control [Wall Mount] (VRUW) +$157.00
QTY: 3 Blower Snap Disc (VTU) +$135.00
QTY: 4 Baffle Refractory [set of 2] (PR-ISO2205) +$511.08
QTY: 5 Back Refractory (PR-SR2618) +$521.44
QTY: 6 Right Side Refractory (PR-SR2619D) +$521.44
QTY: 7 Left Side Refractory (PR-SR2619G) +$521.44
QTY: 8 Bottom Refractory (PR-SR2201) +$521.44
QTY: 9 Right Side Front Refractory (PR-SR2202D) +$521.44
QTY: 10 Left Side Front Refractory (PR-SR2202G) +$521.44
QTY: 11 Door Handle [set of 2] (PR-SR1787) +$237.31
QTY: 12 Door Rod and Lock (PR-SR2118) +$189.43
QTY: 13 Fireplace Door and Hinge (PR-SR2395TCE) +$170.51
QTY: 14 Black Decorative Screw & Cap [includes 8 screws, 16 caps] (PR-SACMEFBK) +$232.36
QTY: 15 Brushed Nickel Decorative Screw & Cap [includes 8 screws, 16 caps] (PR-SACMEFBN) +$249.24
QTY: 16 Ceramic Glass Panel (PR-SR2222-1) +$1169.10
QTY: 17 Secondary Air Tube (PR-SR2271) +$186.12
QTY: 18 Cast-Iron Log Retainer Support [2 per unit, each sold separately] (PR-SR2324) +$205.94
QTY: 19 Cast Iron Log Retainer Bar (PR-SR2323) +$196.03
QTY: 20 Glass Gasket for Steel and Cast Door (PR-SR1823H) +$108.10
QTY: 21 Steel Door Frame Gasket (PR-SR1685D) +$116.71
QTY: 22 Cast Door Frame Gasket (PR-SR1823G) +$159.44
QTY: 23 Black Metallic Touch-Up Paint (H8159) +$76.49
QTY: 24 Charcoal Touch-Up Paint [For Hammered Finish] (PR-P6201) +$116.71
QTY: 25 Outside Air Coupler (UZIAD) +$77.00
QTY: 26 Coupler for AC Chimney (H3274) *No Longer Available* +$*0.00*
QTY: 27 Blower for Central Forced Air Kit (BISZY) +$780.50
QTY: 28 Blower to Flexible Pipe Adapter (BISAVF) +$209.24
QTY: 29 Backdraft Damper (BISBD) +$97.76
QTY: 30 Flex Adapter with 2 Clamps (BISAF) +$174.71
QTY: 31 Metal Fab Collar and Sleeve (F4189) *No Longer Available* +$*0.00*
QTY: 32 Top Standoff Header Shield (F4713) +$275.29
QTY: 33 Damper Rod (H8393) +$210.89
CHIMNEY COMPONENTS
Item Description (Part Number)
QTY: 34 6 Inch Stainless Steel Chimney Length [set of 2] (F3966) +$360.00
QTY: 35 12 Inch Stainless Steel Chimney Length [set of 2] (F3967) +$382.00
QTY: 36 18 Inch Stainless Steel Chimney Length [set of 2] (F3968) +$415.00
QTY: 37 24 Inch Stainless Steel Chimney Length (F3969) +$236.00
QTY: 38 36 Inch Stainless Steel Chimney Length (F3970) +$247.00
QTY: 39 48 Inch Stainless Steel Chimney Length (F3971) +$281.00
QTY: 40 15 Degree Stainless Steel Elbow [set of 2] (F3972) +$460.00
QTY: 41 30 Degree Stainless Steel Elbow [set of 2] (F3973) +$460.00
QTY: 42 Firestop Spacer (F3974) +$34.00
QTY: 43 Insulation Shield (F3975) +$135.00
QTY: 44 Flat Flashing (F3976) +$112.00
QTY: 45 2/12-5/12 Flashing (F3977) +$112.00
QTY: 46 6/12-10/12 Flashing (F3978) +$180.00
QTY: 47 Roof Brace (F3980) +$135.00
QTY: 48 Storm Collar (F3981) +$34.00
QTY: 49 Round Cap with Spark Arrester (F3982) +$146.00
QTY: 50 Non-Insulated Wall Firestop (F3983) +$112.00
QTY: 51 Adjustable Support (F3984) +$78.00
QTY: 52 Wall Band (F3985) +$68.00
QTY: 53 Support Band (F3986) +$34.00
ACCESSORIES
Item Description (Part Number)
QTY: 54 Black Montecito Facade (F2320) +$674.00
QTY: 55 Hammered Steel Montecito Facade (F3609) +$2460.00
QTY: 56 Black Montecito Door (F1857) *No Longer Available* +$*0.00*
QTY: 57 Hammered Steel Montecito Door (F3610) +$2460.00
QTY: 58 Black Cast Iron Door (F1859) +$1348.00
QTY: 59 Outside Air Coupler to Connect Outside Air to Fireplace (UZIAD) +$77.00
QTY: 60 Outside Air Ducting [Includes: 4 Inch Insulated Flex X 10 Feet Long] (UZI) +$132.00
QTY: 61 Heatflo Conversion Kit (F3790) +$674.00
QTY: 62 Central Forced Air Kit [Includes: Blower, Flex Adapter, 2 Clamps, Variable Speed Control, Thermo-Disk, Fan to Flexible Pipe Adapter, Backdraft Damper and Aluminium Tape] (BISFWK-1) +$1011.00
QTY: 63 Flexible Pipe - 5 Inches X 15 Feet (5FLEX15) +$281.00
QTY: 64 Flexible Pipe - 5 Inches X 25 Feet Long (5FLEX25) +$460.00
QTY: 65 Heating and Cooling Thermostat (HCTW) +$561.00
QTY: 66 Owners Manual [Hard Copy] [900992-00] (OMHC-L) +$9.99
QTY: 67 Owners Manual [Electronic Copy] [900992-00] (OMEL-L) +$0.00
|
